Concrete / Asphalt Saw Blades

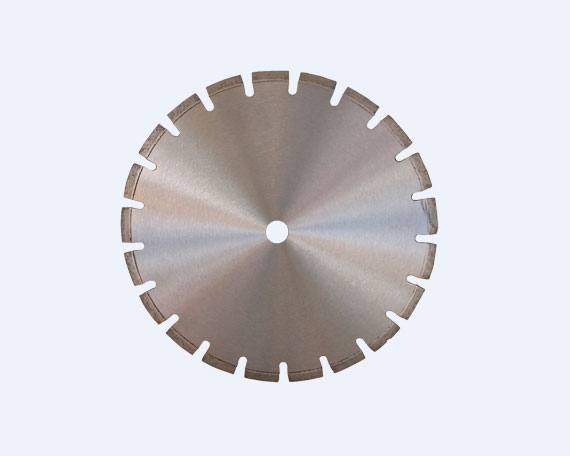

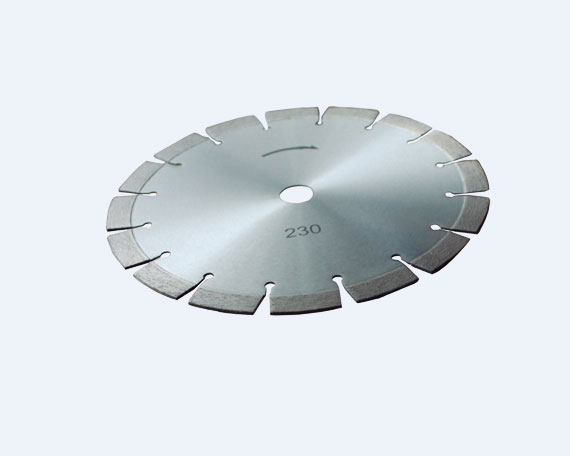

Diamond Saw Blade For Cured Concrete

Features:

1.Laser welded
2.Professional road cutting discs
3.Fast heat dissipation
4.High speed and long working life

Description
Application: for cured concrete

Segment type: normal segment, “u”slot

Specification

Item No Diameter Arbor Segment Dimension Segment Number
Inches MM MM Thick(MM) Height(MM)
    SDCC-12　 12〞 300 25.4 3 8/10/12 20
SDCC-14 14〞 350 25.4 3 8/10/12 24
SDCC-16 16〞 400 25.4 3.2 8/10/12 28
    SDCC-18　 18〞 450 25.4 3.6 8/10/12 32
    SDCC-20　 20〞 500 25.4 3.6 8/10/12 36
    SDCC-24　 24〞 600 25.4 4 8/10/12 42

Other sizes and specifications are available upon request.
