Ceramic / Tile Saw Blades

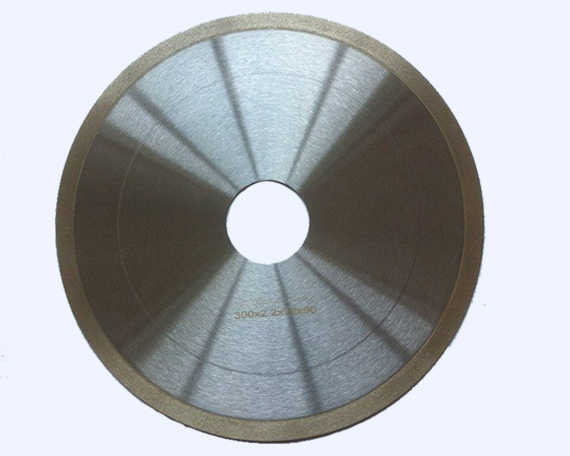

Sintered Continuous Rim Ceramic Saw Blade

Features:

1.Hot press sintered
2.Continuous Rim
3.Fast cutting with free chipping

Description

Application:
1.Used on the tile saw, bevel-tile saw, angle grinder and circular saw
2.For tile, ceramic, porcelain
Specification:

Item No.	Outer diameter		Arbor(mm)	Segment size		Manufacture process
Item No.	Inch	MM	Arbor(mm)	Thickness(mm)	Width(mm)	Manufacture process
SDCR-04	4″	100	20	1.2	5	Hot Press
SDCR-43	4.3”	110	20	1.6	5
SDCR-05	5″	125	60	2	8
SDCR-06	6″	150	22.23	2	5
SDCR-07	7″	180	22.23	2.2	10
SDCR-08	8″	200	22.23	2.2	8
SDCR-09	9″	230	22.23	2.2	10
SDCR-10	10″	250	60	2.4	10
SDCR-12	12″	300	60	2.2	10
