Grinding Cup Wheel

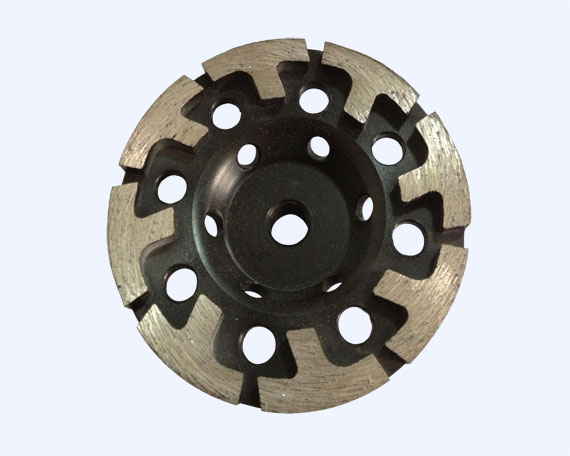

Silver Brazed “T” Shape Grinding Wheel

Features:

For fast grinding surface and shaping

Description
Application: Granite, marble, concrete，brick，block

Machinery: Angle grinder.

Specification
Item No Diameter Arbor Segment Dimension(MM) NO. OF SEG.
Inches MM MM W H
SDTS-04 4'' 105 22.23/M14 4 20 8
SDTS-45 4.5'' 115 22.23/M14 4 20 9
SDTS-05 5'' 125 22.23/M14 4 20 10
SDTS-06 6'' 150 22.23/M14 4 20 12
SDTS-07 7'' 180 22.23/M14 4 20 14

Different arbor sizes and segment specifications are available upon request.
