Grinding Cup Wheel

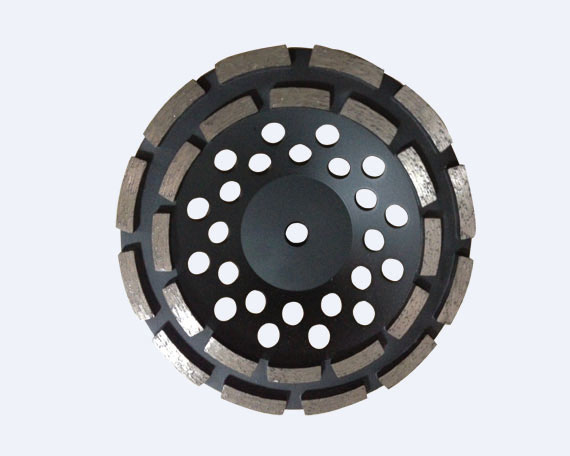

Silver Brazed Double Row Cup Wheel

Features:

1.For beveling, smoothing and shaping
2.Excellent performance

Description
Application: Granite, marble, concrete products, masonry material and all types of natural stone

Machinery: Angle grinder.

Specification
Item No Diameter Arbor Segment Dimension(MM) NO. OF SEG.
Inches MM MM L W H
SDDW-04 4'' 105 22.23 20/30 5/5 8/8 8/8
SDDW-45 4.5'' 115 22.23 20/30 5/5 8/8 9/9
SDDW-05 5'' 125 22.23 22/31 5/5 8/8 9/9
SDDW-06 6'' 150 22.23 22/35 5/5 8/8 10/10
SDDW-07 7'' 180 22.23 28/35 5/5 8/8 12/12
SDDW-09 9'' 230 22.23 30/35 5/5 8/8 16/16

Different arbor sizes and segment specifications are available upon request.
