Ceramic / Tile Saw Blades

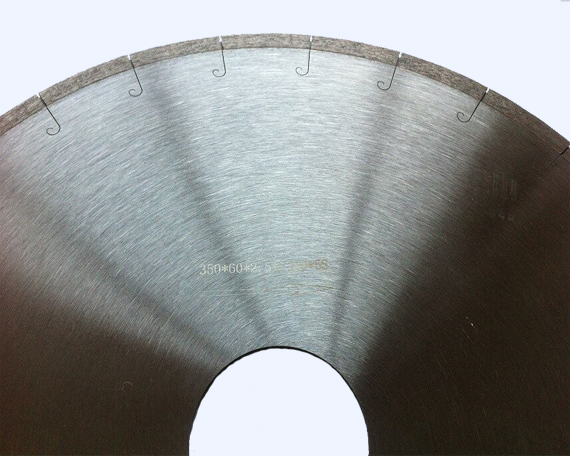

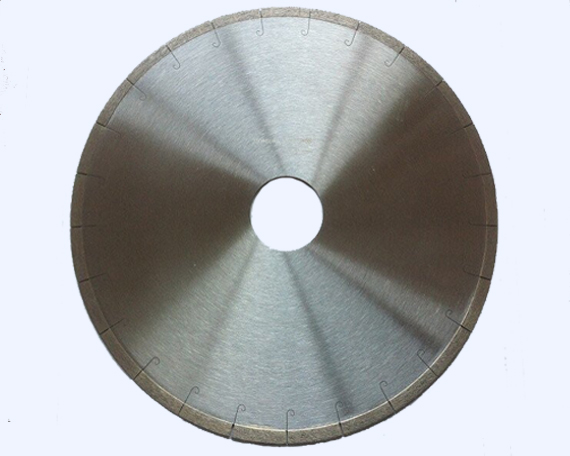

Welded Segmented J Slot Ceramic Saw Blade

Features:

1.Laser welding
2.Segmented J Slot
3.Special slot & ultra-thin kerf through the rim and core release stress on the blade during cutting

Description
Application:
    1. Used on the tile saw, bevel-tile saw, angle grinder and circular saw
    2. For tile, ceramic, porcelain
Specification:
Item No. Outer diameter Arbor(mm) Segment size Welding Type
Inch Metric Thickness(mm) Width(mm)
SDMJ-07 7″ 180 60 1.8 10 Welding Type
SDMJ-08 8″ 200 60 2.2 10
SDMJ-10 10″ 250 60 2.2 10
SDMJ-12 12″ 300 25.4/50/60 2.2 10
SDMJ-14 14″ 350 25.4/50/60 3 10
