Tuck Point Blade/Crack Chaser

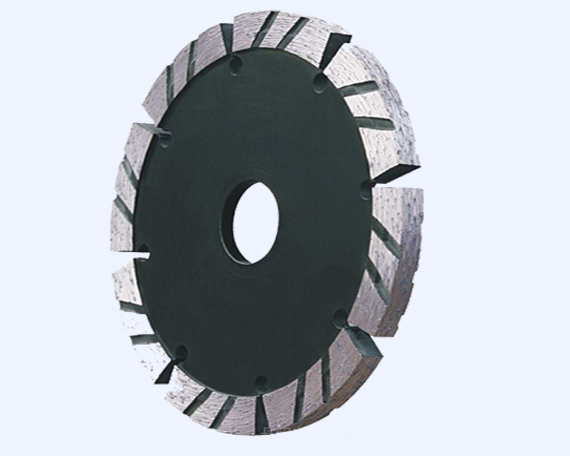

Flat Segmented Turbo Tuck Point Blade

Features:

1.Diameter: 4”-9”
2.Type: Flat segmented turbo

Description

Application:
1.The wide segments are specially designed for mortared expansion joints and slotting granite, marble, concrete, etc.
2.These blades provide fast & easy removal of grouted or mortared joint material.
Specification:

Item No.	Out Diameter		Abor Diameter	Segment Width	Segment Height
Item No.	MM	INCH	MM	MM	MM
FSTTP-04	105	4”	22.23	6.4/9.5	10
FSTTP-45	115	4.5”	22.23	6.4/9.5	10
FSTTP-05	125	5”	22.23	6.4/9.5	10
FSTTP-06	150	6”	22.23	6.4/9.5	10
FSTTP-07	180	7”	22.23	6.4/9.5	10
FSTTP-09	230	9”	22.23	6.4/9.5	10

different abor sizes and segment specifications are available upon request.
