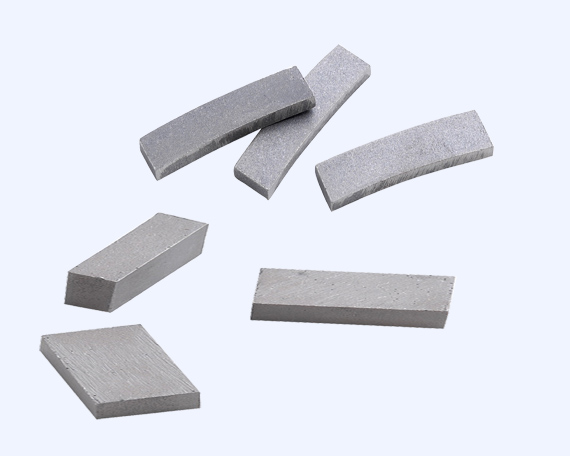

Diamond Segment for Marble Block Cutting
Features:
1.Good sharpness and high efficiency
2.Smooth cutting, flat surface and even size
3.Stable cutting, narrow cutting gap and stone waste reduction
4.Easy for marble block cutting & long lifespan
Application:
1. For marble block cutting
2. Used on single or multi blades
Specification:
| Item No. | Diameter(mm) | Segment Size(mm) | Steel Blank Thickness (mm) | Segment Number | Shape |
| SDDM-900 | 900 | 24*7.5*10/13 | 5 | 64 | Straight |
| SDDM-1000 | 1000 | 24*7.5*10/13 | 5 | 70 | |
| SDDM-1200 | 1200 | 24*8.0*10/13 | 5.5 | 80 | |
| SDDM-1400 | 1400 | 24*8.5*10/13 | 6 | 92 | |
| SDDM-1600 | 1600 | 24*9.5*10/13 | 7 | 108 | |
| SDDM-1800 | 1800 | 24*10.0*10/13 | 7.5 | 120 | |
| SDDM-2000 | 2000 | 24*11*10/13 | 8 | 128 | |
| SDDM-2200 | 2200 | 24*11*10/13 | 8 | 132 | |
| SDDM-2500 | 2500 | 24*12.5*10/13 | 9 | 140 | |
| SDDM-2700 | 2700 | 24*12.5*10/13 | 9 | 140 | |
| SDDM-3000 | 3000 | 24*13*10/13 | 9.3 | 160 |
Other specifications are available upon request.
