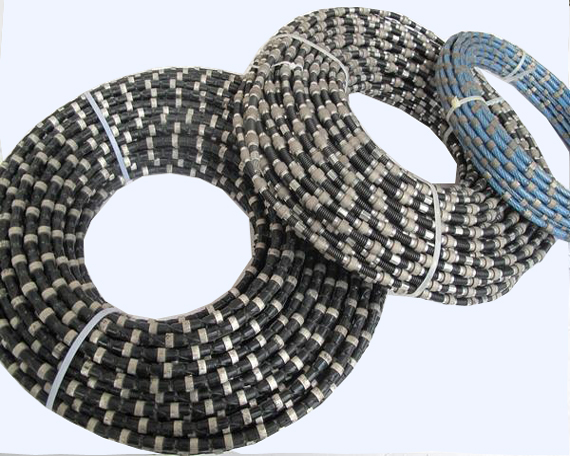

Wire Saw For Granite Quarrying - Diamond Wire for Granite

Specification:

specification	beads/M	coating	product no	hardness	wire speed	cutting speed	life(m²/m)
specification	beads/M	coating	product no	hardness	(m/s)	(m²/h)	life(m²/m)
φ11mm φ11.5mm	40	rubber rubber +spring	SD-GQ-R-A	soft	25-30	8-12	30-50
			SD-GQ-R-B	middle	22-25	4-8	10-30
			SD-GQ-R-C	hard	18-22	2-4	5-10
φ12mm φ13.1mm		rubber rubber +spring	SD-GQ-R-A	soft	40-50	20-30	41-69
			SD-GQ-R-B	middle	35-40	18-22	14-41
			SD-GQ-R-C	hard	30-35	10-22	7-14

Advantage:

a) The rubber adheres better to the beads and support cable, which protect it better from the action of abrasive pastes, in particular when the cable takes up small radii of curvature (beginning and end of quarry cuts)
b) The rubber easily withstands increases in temperature caused by badly controlled water spraying, which often happens in a quarry, whereas plastic softens and losses its strength properties.
c) The flexibility of a cable fitted with rubber is greater, which reduces the risk of irregular wearing of the beads (ovalisation phenomenon).

Notice:

* Diameter of the Wire

* Wire Type (rubber or rubber+spring)

* Granite Type (Hard, Medium, Soft, or Abrasive)

* Quantity (How many Meters)

* Wire Saw Machine Power (How many KW or HP of the motor)

* Expected cutting speed and life(m²)
